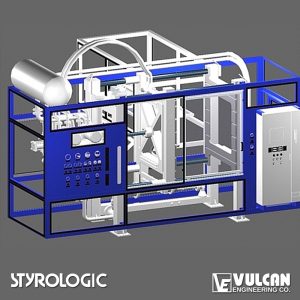

Foam Molding Machine MPH 80/60
Foam Molding Machine MPH 80/60 is used for producing foam replicas from pre-expanded polystyrene beads. This equipment is specifically designed for the lost foam process.
| Electric | 19 HP (14kW) |
|---|---|
| Tool Mounting Flanges (outside) | 34 in x 26 in (875mm x 675mm) |
| Tool Mounting Flanges (inside) | 32 in x 27 in (800mm x 600mm) |
| Max Opening between Mounting Plates | 28 in (710mm) |
| Max Fill Injector Connections | 15 |
- Horizontal operation (vertical parting line)
- Standard Styrologic steam chest system; chest design allows for positive and quick tooling change
- Tool flange faces are stainless steel
- Adjustable, 2-speed, pressure compensated hydraulic system.
- Four over-sized guide bars, containing expansion compensation bearings, provide quick motion, even load, plate to plate squareness with powerful locking forces
- Pressure bead fill system with a fine tune regulator for producing thin wall patterns; and connections for attaching fill guns.
- Even heat transfers to both tool faces controlled by independent steam valves
- PLC controls for machine functions. All process steps are freely programmed and continuously indicated on panel mounted touch screen operator interface
- Fixed and moving chests have adjustable water dosing system providing efficient atomization of a small quantity of water
- High power vacuum system containing liquid ring pump and accumulator designed for rapid evacuation of steam chests and stabilization of foam pressure along with minimizing foam moisture content.
