Fox® Round Parts Grinder

Fox® Round Parts Grinders are available as Automatic or Semi-Automatic grinding of the outside diameter of round castings.

Fox® Round Parts Grinders are available as Automatic or Semi-Automatic grinding of the outside diameter of round castings.Typical usage is the grinding of brake drums, brake rotators, hubs, and any other round products produced in higher volumes.

These systems feature:

  • Versatile workstation easily set up to accept round parts
  • Increase in productivity compared to hand or stand grinders
  • Improved appearance compared to hand grinders
  • Uniform and consistent grind
  • Automatic operation improves safety by removing personnel from grinding operation
  • Automatic grind removes requirement to train each person to grind castings
  • Available in abrasive grinding wheels or abrasive belt configurations
Wheel Size

24in x 3in x 12in, (610mm x 76mm x 305mm)

Wheel Speed

12,500 SFPM (63 m/s) Standard, 9,500 SFPM (50 m/s) On Request

Motor

25HP

Part Rotation Speed

Variable

Part Dimensions

Typical 7in – 19in diameter x 12in tall, (180mm – 480mm diameter x 305mm tall)

Operation Mode

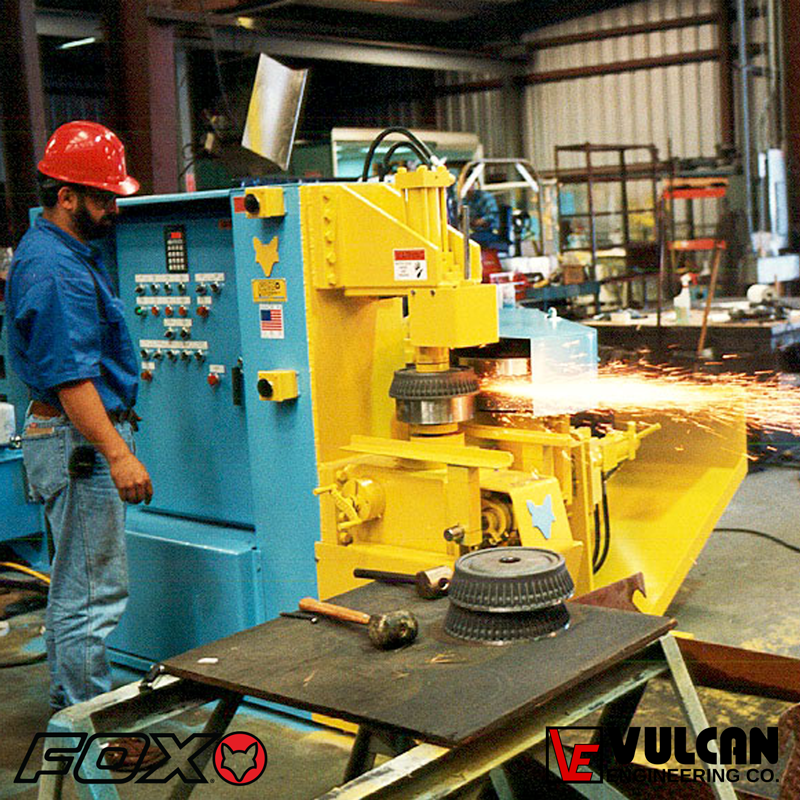

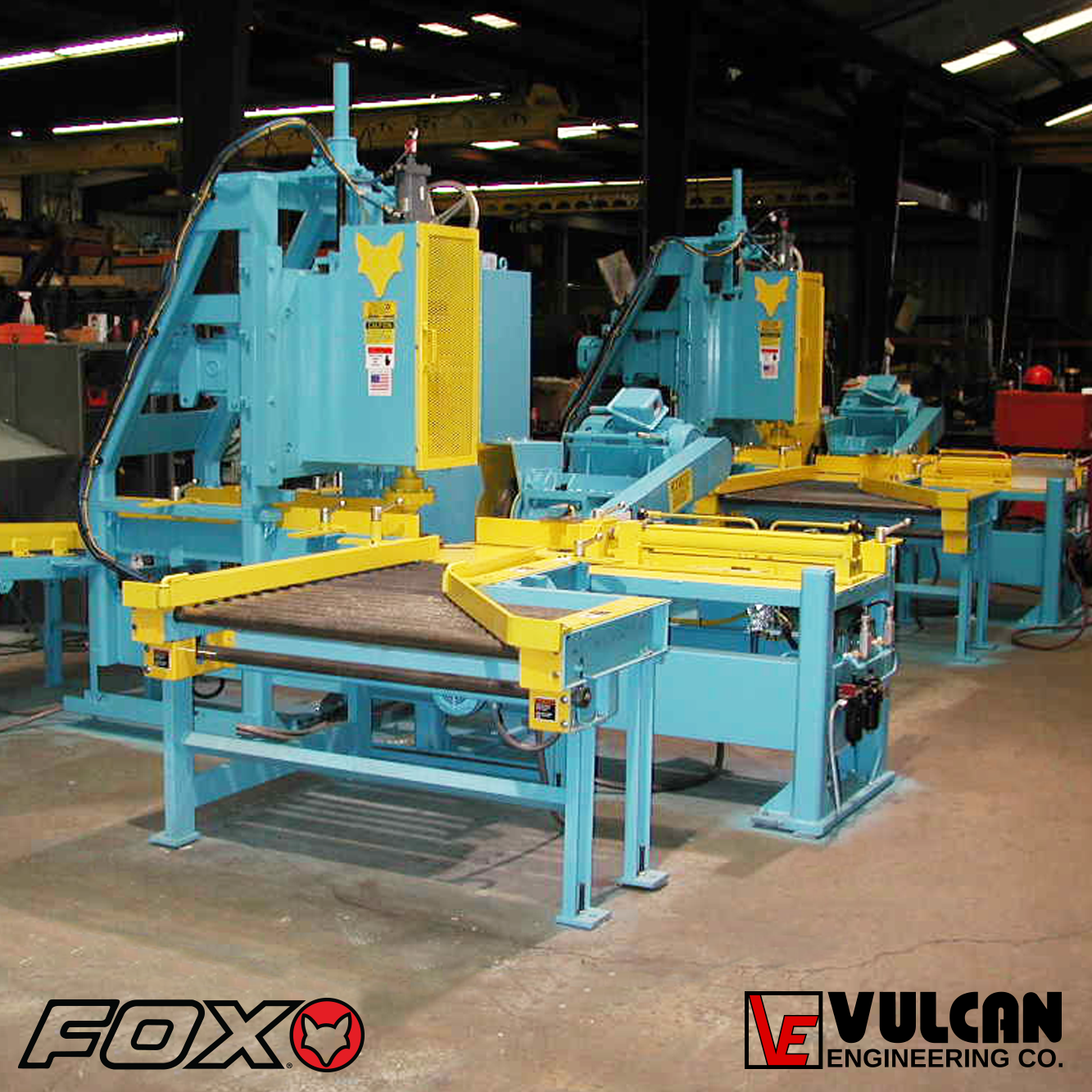

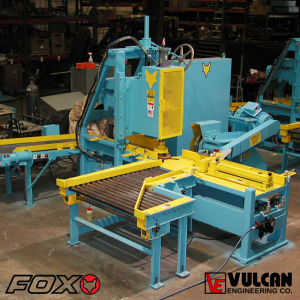

Semi-Automatic operation involves manual feeding of parts, Automatic operation integrates conveyors for high throughput

  • Versatile workstation easily set up to accept round parts
  • Increase in productivity compared to hand or stand grinders
  • Improved appearance compared to hand grinders
  • Uniform and consistent grind
  • Available in abrasive wheel or abrasive belt configurations
  • Automatic
  • Semi-Automatic
  • Fix wheel for small gate and parting line removal
  • Movable wheel for large gate removal
  • Complete integrated solutions to process “non-round” areas of the casting
