Vulcan manufactures several sizes of Rotary Screens for the removal of core butts and other tramp materials from the Sand System. Made from 1/4 inch C.S. Plate with 3/8 inch Gusset Plates & Stiffeners at Bearing Mounts. Equipped with a Dust Hood made of 10 Gage steel with inspection doors and Flanged outlet for Ventilating Air. Also, equipped with an Overs Chute to allow discharged material to dump out into Customer supplied Tote Box at the floor level.

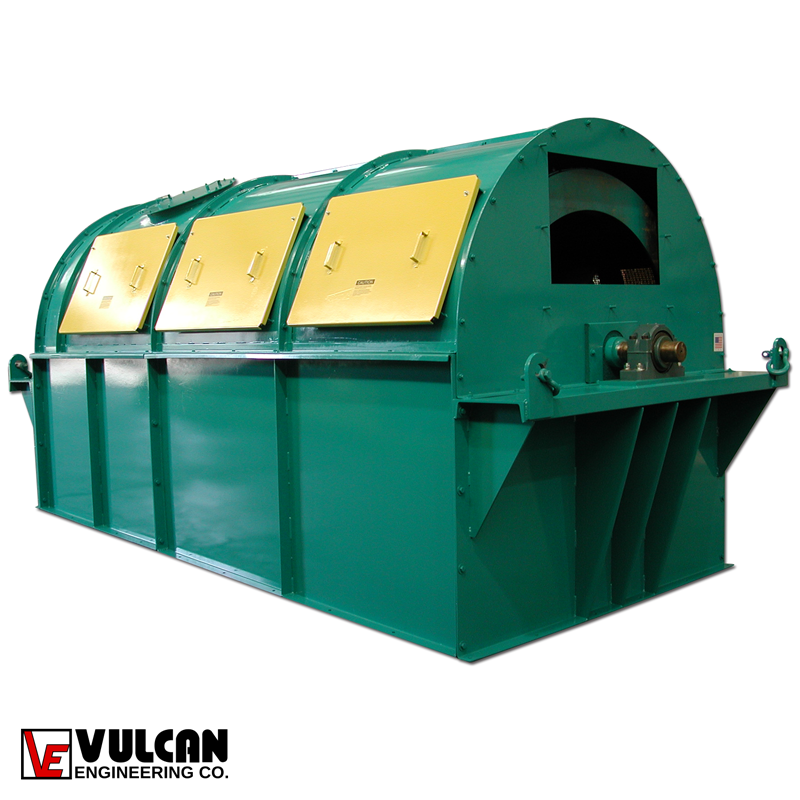

Rotary Sand Screen 250
Vulcan manufactures several sizes of Rotary Screens for the removal of core butts and other tramp materials from the Sand System.
| Capacity | 250 to 300 TPH |
|---|---|
| Frame | Fabricated of 1/4 in plate with 3/8 in plate gussets and channel stiffeners at the bearing mounts |
| Standard Screen Size | 3/8 in x 3/4 in (9.5 mm x 19.1 mm) |
| Design Specifications | 6 ft – 0 in diameter x 15 ft – 0 in long |
| Dust Hood | Fabricated of 10 gauge steel with 4 inspection doors and flanged outlet for ventilating air |
- Rugged simple design and construction provide for low maintenance costs.
- Unit is totally enclosed for dust collection. Interior is epoxy coated.
- Special foundry service pillow block bearings with lubrication fittings and positive dust seals.
- Reverse air jet to clean screen (electrically controlled).
- Felt dust shields are provided at the points where the shaft exits the dust hood.
- Supported from sand bin.
