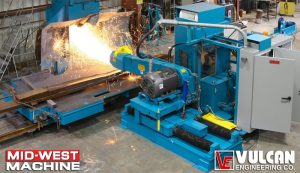

Mid-West Machine™ 6040S Stationary Grinder

Mid-West Machine™ 6040S Stationary Grinder is designed to work effectively in rugged, dirty environments. This machine is designed for maximum up time with the highest quality components and innovative designs that are assembled and arranged for easy service. This machine's primary purpose is for conditioning titanium round-cornered squares. The system includes a basic stationary grinder, complete with electricals and hydraulics.

Mid-West Machine™ 6040S Stationary Grinder is designed to work effectively in rugged, dirty environments. This machine is designed for maximum up time with the highest quality components and innovative designs that are assembled and arranged for easy service. This machine’s primary purpose is for conditioning titanium round-cornered squares. The system includes a basic stationary grinder, complete with electricals and hydraulics.

Cars available:
• Billet clamping, manipulator for sides and corners
• Slab clamping, horizontal and vertical for edge grinding
• Rounds rotator for spiral grinding, longitudinal and spot grinding

Cable Drive systems for above cars:
• Utilizing vector drive for speeds of 1 inch/minute up to 200 feet/minute
• Hardened cable drum with two cable connections to car

Machine Size

Length: 177 in (4,496mm) Width:128 in (3,251mm) Height: 115 in (2,921mm)

Machine Weight

33,000 lbs (14,970 kgs)

Grinder Head

Horizontal Stroke: 60 in (1,524mm) Vertical Stroke: 40 in (1,016mm)

Grinding Wheel

Size: 24 in x 3 in to 4 in x 12 in (610mm x 76mm to 102mm x 305mm) or 25 in x 3 in to 4 in x 12 in (635mm x 76mm to 102mm x 305mm) Force: 0 – 2000 lbs. (907 kgs) Speed Typical for Titanium: 12,500 SFPM @ 24 in (610mm) or 13,000 SFMP @ 25 in (635mm) Speed typical for Steel Alloys: 16,500 SFPM @ 24 in (610mm) or 17,200 SFPM @ 25 in (635mm) Drive Standard: 150-HP (112 kws) @ 1800 RPM Drive Optional: 200-HP (150 kws) @ 1800 RPM

Grinding Angle

(Wheel to Work) Standard: 90° * Optional: 45°

Cars available:

  • Billet clamping, manipulator for sides and corners
  • Slab clamping, horizontal and vertical for edge grinding
  • Rounds rotator for spiral grinding, longitudinal and spot grinding

Cable Drive systems for above cars:

  • Utilizing vector drive for speeds of 1 inch/minute up to 200 feet/minute
  • Hardened cable drum with two cable connections to car
